Cilium
Cilium CNI
Cilium is a CNI plugin for Kubernetes that provides advanced networking and security features. It uses eBPF (extended Berkeley Packet Filter) technology to enable high-performance networking, load balancing, and security policies at the kernel level.
Note
This Docs is only Cilium provided by Ksctl
You can only choose CNI plugin during the cluster creation process.

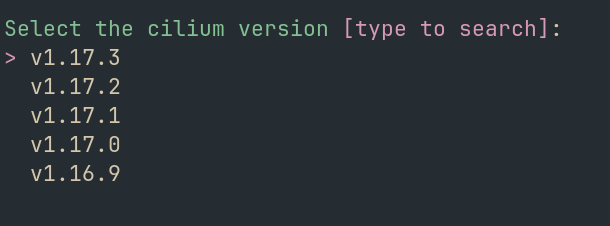

Version selection
Default: latest
Now you can choose the Cilium version you want to install.
Cilium configuration

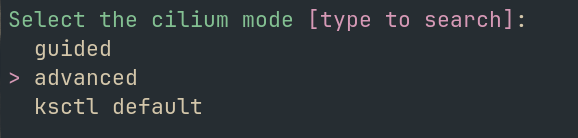

You can customize the Cilium Configuration. 3 modes are available:
- Default: It represents opinionated configuration for Cilium by Ksctl Team.
1hubble:
2 ui:
3 enabled: true
4 relay:
5 enabled: true
6 metrics:
7 enabled:
8 - dns
9 - drop
10 - tcp
11 - flow
12 - port-distribution
13 - icmp
14 - httpV2:exemplars=true;labelsContext=source_ip,source_namespace,source_workload,destination_ip,destination_namespace,destination_workload,traffic_direction
15
16l7Proxy: true
17kubeProxyReplacement: true
18
19encryption:
20 enabled: true
21 type: wireguard
22
23operator:
24 replicas: 3
25 prometheus:
26 enabled: true
27
28prometheus:
29 enabled: true
- Advance: You can specify the helm chart
values.yml
file to customize the Cilium configuration. it will open a text editor based on your terminal ENV$EDITOR
if not set it will usevim

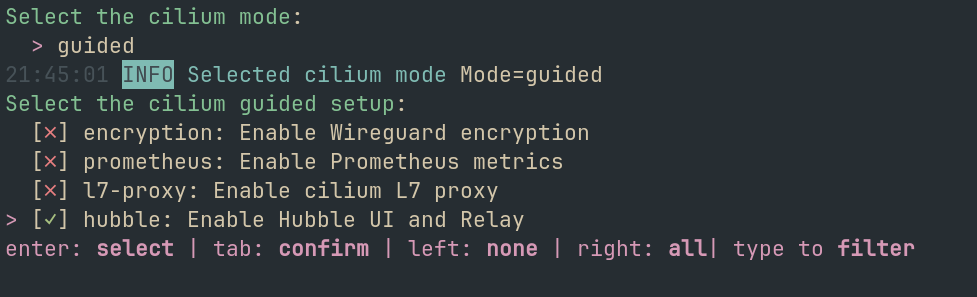

as default. Refer Helm Chart Values - Guided: It will provide you our preconfigured options of what all specific omponents to Enable/Disable
